City of Playford

On-grade

Inlet Type
Double Bay (1900mm), ("Abrupt" Transition 1200mm):

Drawing details
With deflector

drawing details
Without deflector

drawing details

50 mm Lid, Central standard support (setback)

With & without deflectors

Capture Curves

capture curves

Notes:

  • Double Bay (1900mm)
  • 50mm lid with central standard support (setback)
  • Inlet with deflectors, if grade>=1%
  • Upstream transition: 1200mm
  • Downstream transition: 600mm
  • Inlet depression: 85mm
  • Barrier Kerb and channel: 300mm
  • Crossfall: 3%

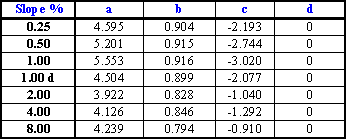

Curve Equations

Q = aXb+cX+d

curve equations

Notes:

  • Double Bay (1900mm)
  • 50mm lid with central standard support (setback)
  • Inlet with deflectors, if grade>=1%
  • Upstream transition: 1200mm
  • Downstream transition: 600mm
  • Inlet depression: 85mm
  • Barrier Kerb and channel: 300mm
  • Crossfall: 3%


Picture of tests

Longitudinal grade (%) with Approach flow (l/s)

Grade 0.25% & flow 241l/s
Grade 1% & flow 169l/s
Grade 6% & flow 121l/s
Grade 10% & flow 121l/s
Grade 16% & flow 70l/s

Sag

Double Bay (50mm lid)

Capture Curves

capture curves

Notes:

  • Double Bay (1900mm)
  • 50mm lid with central standard support (setback)
  • Without deflectors
  • Upstream transition: 1200mm
  • Inlet depression: 85mm
  • Barrier Kerb and channel: 300mm
  • Crossfall: 3%
