City of Adelaide

On-grade

Inlet Type:
Single Pit (900mm) With Grate

Capture Curves

 - Single pit with grated inlet

capture curves

Notes:

  • Single Pit with Grated inlet (900mm)
  • Without deflectors and transition
  • Barrier Kerb and channel: 450mm
  • Crossfall: 3%

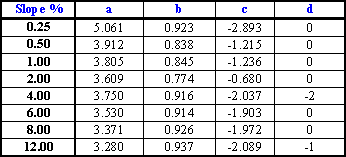

Curve Equations

Q = aXb+cX+d

curve equations

Notes:

  • Single Pit with Grated inlet (900mm)
  • Without deflectors and transition
  • Barrier Kerb and channel: 450mm
  • Crossfall: 3%


Picture of tests

Test pic 1test pic 2

test pic 3test pic 4

test pic 5test pic 6

test pic 7



Drawing details

drawing details

drawing details 2

Sag

Single pit without Grate

Capture Curves

Depth of invert
- Sag test for single pit
- Capture curve
- City of Adelaide

capture curves

Notes:

  • Single Pit (900mm)
  • Without grate
  • Without deflectors and Transition
  • Barrier Kerb and Channel: 450mm
  • Crossfall: 3%

Double pit without Grate

Capture Curves

Depth of invert
- Sag test for double pit
- Capture curve
- City of Adelaide

capture curves

Notes:

  • Double Pit (1900mm)
  • Without grate
  • Without deflectors and Transition
  • Barrier Kerb and Channel: 450mm
  • Crossfall: 3%
