City Salisbury

On-grade

Inlet Type
Double Bay (1900mm)

Without deflectors

Capture Curves

capture curves

Notes:

  • Double Bay (1900mm)
  • Without deflectors
  • Upstream transition: 1200mm
  • Downstream transition: 600mm
  • Inlet depression: 50mm
  • Barrier Kerb and channel: 300mm
  • Extended  apron-300mm
  • Crossfall: 3%

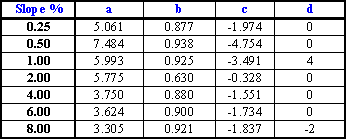

Curve Equations

  Q = aXb+cX+d

curve equations

 Notes:

  • Double Bay (1900mm)
  • Without deflectors
  • Upstream transition: 1200mm
  • Downstream transition: 600mm
  • Inlet depression: 50mm
  • Barrier Kerb and channel: 300mm
  • Extended apron-300mm
  • Crossfall: 3%

Picture of tests

Longitudinal grade (%) with Approach flow (l/s)

Grade 0.5% & flow 69l/s

Grade 0.5% & flow 69l/s

Grade 1% & flow 70l/s

Grade 1% & flow 70l/s

Grade 2% & flow 68l/s

Grade 2% & flow 68l/s

Inlet drawing details

inlet drawing details

With deflectors

Capture Curves

capture curves

Notes:

  • Double Bay (1900mm)
  • With deflectors
  • Upstream transition: 1200mm
  • Downstream transition: 600mm
  • Inlet depression: 50mm
  • Barrier Kerb and channel: 300mm
  • Extended apron-300mm
  • Crossfall: 3%

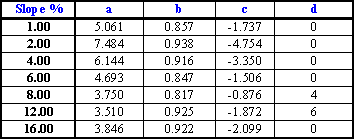

Curve Equations

  Q = aXb+cX+d

curve equations

Notes:

  • Double Bay (1900mm)
  • With deflectors
  • Upstream transition: 1200mm
  • Downstream transition: 600mm
  • Inlet depression: 50mm
  • Barrier Kerb and channel: 300mm
  • Extended apron-300mm
  • Crossfall: 3%

Picture of tests

Longitudinal grade (%) with Approach flow (l/s)

Grade 4% & flow 70l/s

Grade 4% & flow 70l/s

Grade 8% & flow 120l/s

Grade 8% & flow 120l/s

Grade 16% & flow 36l/s

Grade 16% & flow 36l/s

Inlet drawing details

inlet drawing details

Sag

Double Bay

Capture Curve

capture curves

Notes:

  • Double Bay (1900mm)
  • Without deflectors
  • Upstream transition: 1200mm
  • Downstream transition: 600mm
  • Inlet depression: 50mm
  • Barrier Kerb and channel: 300mm
  • Extended apron-300mm
